Experience ARNO’s Versatile Grooving System

The NC Grooving System is a versatile system capable of face grooving, OD grooving, ID grooving, and groove and copy turning applications. The system is adaptable to your CNC lathe via square shank back ends or industry-standard adaptors. The NC grooving insert selection is just as versatile, offering precision peripheral ground geometries, robust as-pressed geometries, and ARNO’s venerable ALU up sharp geometry for your non-ferrous applications.

NC Grooving System Overview

Our Business Development Manager, Keith Stroup, does a deep dive into the features and benefits of the entire NC System for you.

Face Grooving, the ARNO USA Way

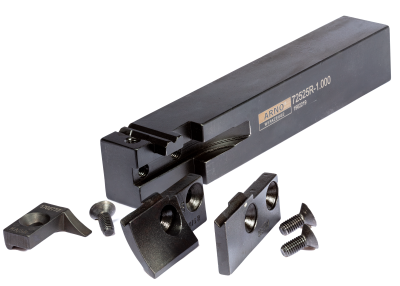

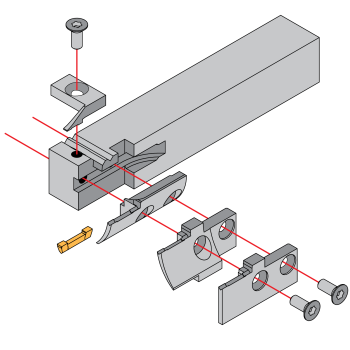

Flexible Modular System

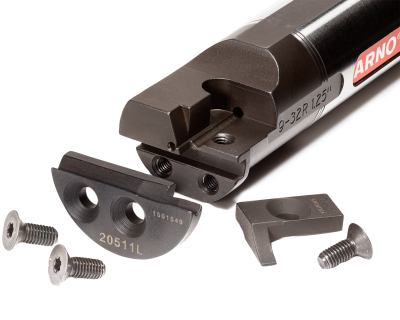

Your NC grooving system, consisting of three essential components—adaptor, support blade, and clamp—will be configured to suit multiple applications.

World-Class Face Grooving

The ARNO NC system is best known for its face grooving (axial grooving) capabilities. Modular blades and holders make it easy to transition between diameters, ranging from as small as 0.591” to larger than 20”.

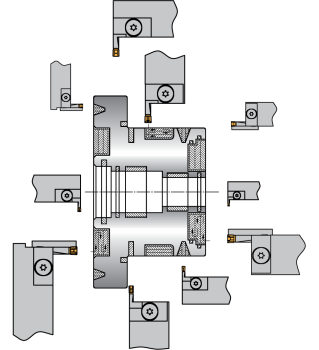

Multi-Function Platform

Execute over 120 operations, including grooving, groove & copy turning, profiling, face grooving, internal radial grooving, and internal face grooving, with the ARNO NC Grooving system.

External Blades

Once you know which external modular tool holder will fit your machine, select from this wide array of support blades for external grooving, face grooving, and KONTRA face grooving.

Go to External Blades

Internal Axial Tool Holders

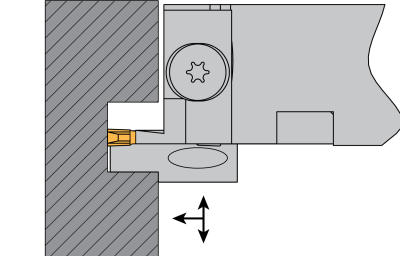

This versatile tool system can handle axial grooving with efficiency and are specially adapted for face grooving and axial groove-turn work in the bottom of bores.

Go to Internal Axial Tool Holders

Internal Blades

A wide range of internal support blades that accommodate radial grooving applications. Find the base tool holder to best suit your machine requirement in Internal Tool Holders, then select from this array of grooving and groove-turn support blade options.

Go to Internal Blades

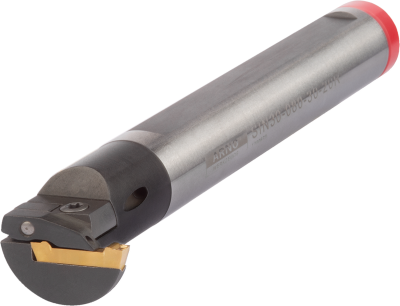

Internal Tool Holders

Internal grooving tools available with integral or modular blades. Available in inch and metric with shank sizes from 1/2" to 2.00" and KM back ends.

Go to Internal Tool Holders

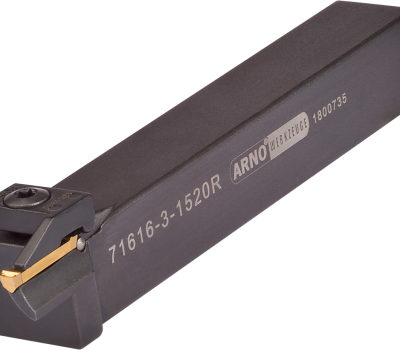

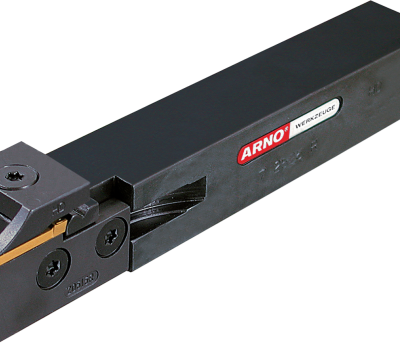

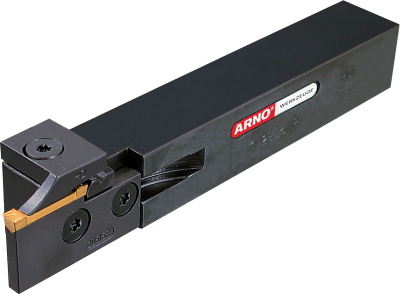

Modular Tool Holders

ARNO's modular system for radial and face grooving tools offer the ultimate in flexibility. Choose your back-end holder from this array of square shank, VDI, KM, and PSC options, then select the proper blade from the External Blades section.

Go to Modular Tool Holders

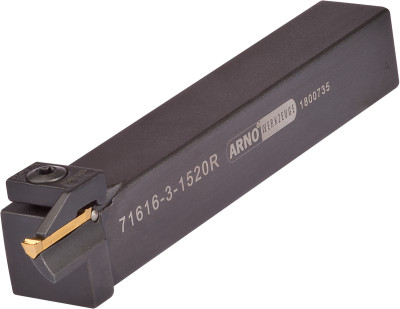

Monoblock Tool Holders

ARNO USA provides a reliable and user-friendly face grooving tool by only needing one spare part. A monoblock holder and a boring bar further expand the range of applications.

Go to Monoblock Tool Holders

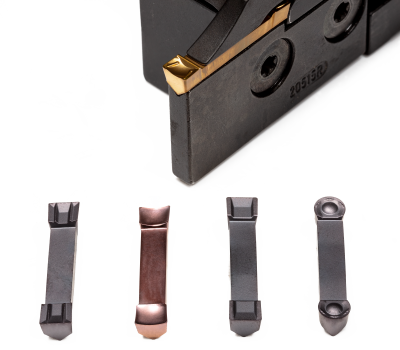

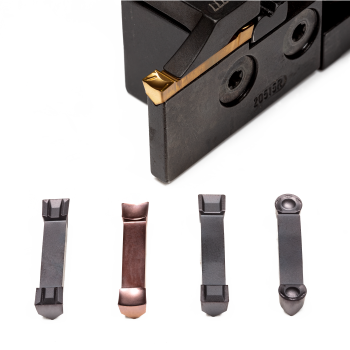

NC Inserts

NC grooving inserts offer both precision ground and as-pressed geometries capable of side turning in both radial and axial (face) groove operations. Selecting ARNO Grooving tools will ensure success in your demanding materials and applications.

Go to NC Inserts
